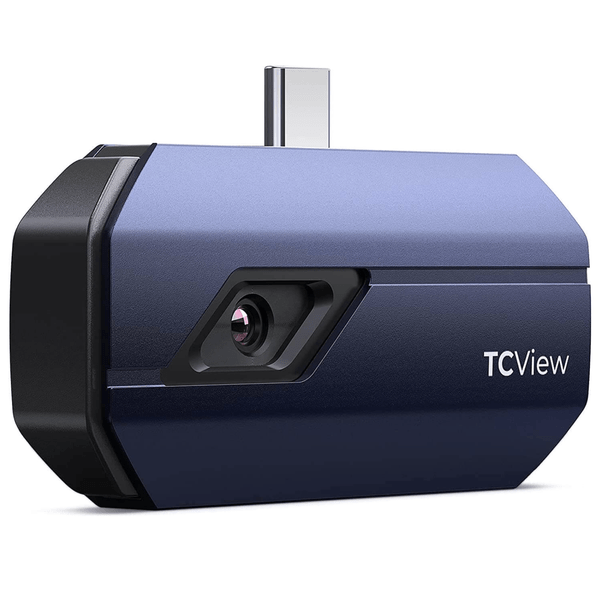

Topdon TCView Thermal imaging Camera
TOPDON’s TC001 is a portable camera that turns your Android & IOS smartphone/tablet or Windows laptop into a powerful thermal imager. Simply download the accompanying app, slot the TCVIEW in your device’s USB port, and unleash thermal technology that formally only belonged to special forces.

Perfect for home inspectors, HVAC technicians, electricians, automotive technicians, and even farmers looking to protect crops and livestock.


Superior Image Quality
Equipped with an ultra-high IR camera resolution of 256x192 pixels, the TC001 can produce a thermal image with unmatched clarity.
The TCVIEW is especially suitable for objects where surface temperature is hardly distinguishable, such as circuit boards and other electronics.

Built For Compatibility & Mobility
The TCVIEW is compatible with Android & IOS phone/tablet and features a downloadable app to turn a regular smartphone into a high-tech thermal camera. Windows tablet functionality is also supported, with the TCView app available to download from the TOPDDON official website.
Designed with mobility in mind, the TCView can easily pair with most Android smartphones; the device only weighs 30g, and measures 71x42x14mm; further adding to the TCView’s mobility.


Optimised Temperature Range And Accuracy
With a wide temperature range of -4℉ to 1022℉(-20℃ to 550℃) , the camera can perform temperature readings for all kinds of objects.
The TCView infrared thermal camera can perform temperature detection within ±3.6ºF (2ºC) or 2% of max temperature.
It can also measure temperature to 0.1ºC accuracy, allowing users to detect temperature with extreme accuracy.

Discover More With The Thermal Imaging App
Users can download the app to view temperature recording data at any time and view or create real-time temperature graphs.
Featuring a DIY temperature range ability, the TOPDON infrared thermal camera allows users to set upper and lower limits, and corresponding colors.


Monitor Temperature Change By Waveform Graph
The TCView can take continuous measurements of a scene, storing the data in the App. This data can provide the high, low, and average temperatures of objects in the scene over a set period of time and generate a waveform graph.
This waveform graph makes thermal reading observation much clearer, and allows for easier thermal temperature analysis.

Low Power Consumption, Longer Lasting
Compared to traditional infrared cameras, the TOPDON TCView infrared thermal camera attaches to a smartphone or a tablet’s input and is powered by the device, eliminating the fear of running out of power outside with low power consumption of only 0.25W.


Unique Image Enhancement Technology
Includes 10 different colour palettes, sharpness and contrast adjustment, picture-in-picture and many other functions. Image enhancement technology makes the field of view clearer and more detailed, and enhances the target recognition function.

More Scenarios For Application
The TCView is plug and play and requires no registration if you only read the temperature. This tool is perfect for jobs such as security purpose, insulation inspection, cylinder inspections, water leak inspection, and HVAC system inspection.



Specs

Spectral Range: 8~14μm
Resolution: 256×192 Pixels
Pixel Size: 12μm
NETD: less than 40mK @25°C, F#1.0, 25Hz
Frame Rate: 25Hz
Object Temperature Range: -20~150°C (-4~302°F), 150°C~550°C (302~1022°F)
Accuracy: Maximum Temperature Variance of 2ºC, right down to the 0.1ºC Note: The potential thermal error will be less than ±1.8°F (1ºC) when the target temperature is below 212°F (100ºC).
Weight: 30g
Dimension: 71*42*14mm (2.80*1.65*0.55 inch)
Cable Length: 50cm (19.69 inch)
Operating Systems: Compatible with Android & IOS Phone / Tablet & Windows Laptops
